Denon's integrated amplifiers. Pair-matching is very difficult in UHC-MOS FET, so
I tried to design single amplifier.
Notice: The term UHC(ultra high current) is named by Denon Co.Ltd
April,1998

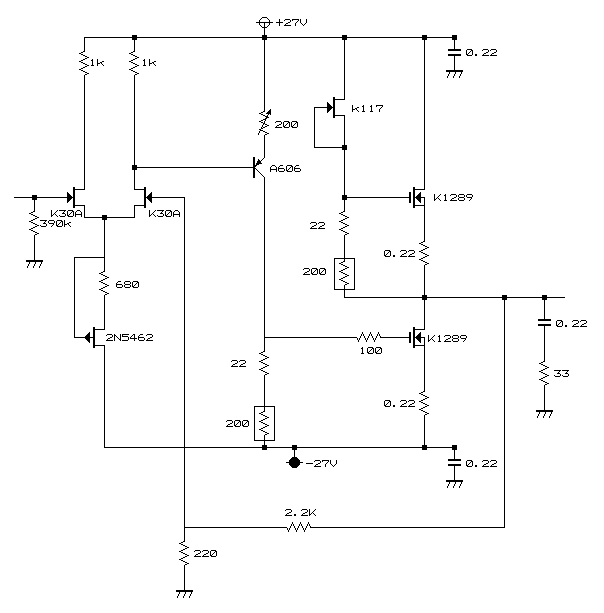

UHC-MOS FET single amplifier
Hitachi's power device 2SK1298 is a
full mold version of 2SK1297 which is used in
Denon's integrated amplifiers. Pair-matching is very difficult in
UHC-MOS FET, so
I tried to design single amplifier.
Notice: The term UHC(ultra high current) is named by Denon Co.Ltd
April,1998
